10 Differences Between Longitudinal And Transverse Waves (With Examples)

SHARE

Wave motion transfers energy from one point to another without permanent displacement of the particles of the medium. A wave can be transverse or longitudinal depending on the direction of its oscillation.

Below is a detailed explanation of differences between longitudinal and transverse waves in the context of their characteristics, behaviors, and real-world implications.

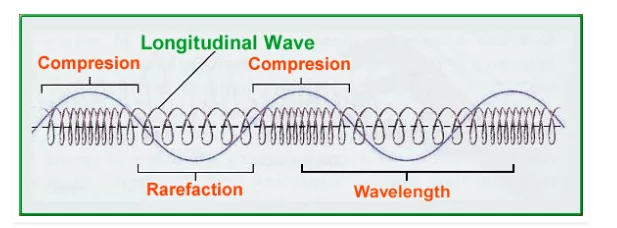

Longitudinal Waves

Longitudinal wave also referred to as compression wave, is a type of mechanical wave in which the displacement of the medium is in the same direction as, or parallel direction to, the direction of propagation of the wave.

In a longitudinal wave, the motion of particles within the medium is characterized by alternating regions of compression and rarefaction. Compression occurs as particles are pushed closer together, resulting in an area of higher pressure and density. Rarefaction occur as particles spread apart, resulting to a decrease in pressure and density. This cyclic pattern of compression and rarefaction is what actually forms the characteristic oscillatory behavior of longitudinal waves.

An example of a longitudinal wave is sound. When a sound source, such as a vibrating object or a speaker cone, generates a disturbance, it creates a series of compressions and rarefactions that propagate through the surrounding air or other medium. As these pressure variations travel, they cause our eardrums to vibrate in a manner that our brains interpret as sound.

The speed at which longitudinal waves travel through a medium depends on the properties of the material. In general, solids transmit longitudinal waves more efficiently than liquids, which, in turn, are more efficient than gases due to the relative closeness of particles. This difference in propagation speed is influenced by factors such as elasticity, density and intermolecular forces within the medium.

Longitudinal waves find applications in various technological fields. In the medical industry, ultrasound imaging applies longitudinal waves to visualize internal structures of the human body. Engineers and scientists use ultrasonic waves to inspect materials for defects, ensuring integrity of structures like bridges and pipelines. In communication, longitudinal waves are used to transmit data through fiber optic cables.

Characteristics of Longitudinal Waves

  • In longitudinal waves, particles of the medium move back and forth in the same direction as the wave travels.
  • As the wave travels, it forms alternating regions of compression, where particles are closely packed together, and rarefaction, where particles are spread apart.
  • Longitudinal waves transfer energy through the movement of particles within the medium. The oscillation of particles allows energy to propagate from one point to another.
  • The speed of a longitudinal wave depends on the properties of the medium through which it travels, such as its density, elasticity, and temperature.
  • Longitudinal waves require a material medium to propagate. They cannot travel through a vacuum because they rely on the interaction of particles within the medium.
  • Longitudinal waves have spherical or cylindrical wavefronts, depending on whether they are originating from a point source (spherical) or a line source (cylindrical).
  • Longitudinal waves do not exhibit polarization like transverse waves do. The oscillation of particles is along the direction of wave travel, so there is no perpendicular plane of oscillation to define polarization.

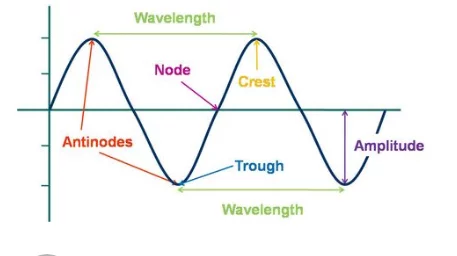

Transverse waves

Transverse waves

Transverse waves is a type of mechanical wave characterized by particle motion that occurs perpendicular to the direction of wave propagation. The perpendicular motion of the wave is caused by a disturbance that is 90 degrees to the direction the wave is traveling.

In a transverse wave, the particles of the medium move in a perpendicular fashion to the wave’s motion. This results in the creation of regions of maximum displacement known as crests, and regions of minimum displacement referred to as troughs. The motion of these particles is akin to the oscillation of a string or rope when it is flicked vertically – the wave travels along the length of the string, but the individual particles of the string move up and down at right angles to the wave’s direction.

One of the most common examples of a transverse wave is light. As an electromagnetic wave, light consists of oscillating electric and magnetic fields that propagate perpendicular to each other and to the direction of wave travel. This characteristic of light allows it to exhibit wave-like behaviors such as reflection, refraction and interference.

Another example of a transverse wave is the wave motion on the surface of water. When a disturbance, such as dropping a pebble into a calm pond, occurs, it generates ripples that move outward from the point of impact. Each water molecule moves in a circular or elliptical path as the wave travels horizontally. The crests of these waves represent the highest points of water displacement, while the troughs correspond to the lowest points.

The propagation speed of transverse waves through a medium is influenced by factors such as tension, density, and elasticity. For instance, a taut guitar string will transmit transverse waves more rapidly than a loosely strung one due to the differences in tension. In solids, transverse waves can travel efficiently because the particles are closely packed and can transmit motion effectively. This property is exploited in seismic studies, where transverse seismic waves provide insights into the Earth’s subsurface composition and structure.

Transverse waves have many applications. In telecommunications, radio waves and microwaves are transverse electromagnetic waves that carry information over large distances. In the field of medicine, X-rays are transverse waves used for imaging purposes, revealing internal structures of the human body. Transverse waves can also be seen in the working of musical instruments, such as stringed instruments and wind instruments, where vibrations generate audible sound waves.

Characteristics of Longitudinal Waves

  • In transverse waves, the particles of the medium move perpendicular to the direction of the wave propagation. This means that the wave’s energy and motion are at right angles to each other.
  • Transverse waves have alternating high points called crests and low points called troughs. These are the points of maximum positive and negative displacement, respectively, from the equilibrium position.
  • The amplitude of a transverse wave is the maximum displacement of a particle from its equilibrium position. It represents the wave’s intensity or energy.
  • The wavelength of a transverse wave is the distance between two successive crests or troughs. It determines the length of one complete cycle of the wave.
  • The Frequency of a transverse wave is inversely proportional to the wavelength. Frequency is the number of complete wave cycles that pass a given point in a unit of time (usually measured in hertz, Hz).
  • Transverse waves propagate by causing particles in the medium to oscillate up and down or side to side. The wave energy is transferred from particle to particle without displacement of the medium.
  • The speed of a transverse wave depends on the properties of the medium it travels through. In many cases, the speed is determined by the tension, density, and other characteristics of the medium.
  • Transverse waves can be polarized, which means that the oscillations of the particles are confined to a specific plane. Polarization can be vertical, horizontal, or at an angle to the wave’s direction of travel.

Also Read: Difference Between Stationary And Progressive Waves

Transverse vs Longitudinal Waves In Tabular Form

Basis of Comparison   Longitudinal Waves Transverse Waves
Particle Motion Direction Particle motion is parallel to the direction of wave propagation.   Particle motion is perpendicular to the direction of wave propagation.
Wave Shape Compressions (high-pressure regions) and rarefactions (low-pressure regions) alternate in the direction of propagation. Crests (peaks) and troughs (valleys) form perpendicular to the direction of propagation.
Examples Sound waves, seismic P-waves, Shock Waves, Ultrasound Waves, Pressure Waves in Fluids etc Seismic S-Waves, Light waves, water waves (ripples), String Instruments (Guitar, Violin, etc.) Electromagnetic Waves (Radio Waves, Microwaves, etc.)
Transmission Waves can be transmitted through all the three types of media, that is solids, liquids and gases.   Waves can only be transmitted through solids or over liquid surfaces.
Speed of Propagation  Propagate at different speeds in different materials, depending on factors like density and elasticity. Propagate at a constant speed in a given medium.
Material Medium Material medium is essential for transmission of longitudinal waves.   Material medium is not required for transmission of transverse wave.
Polarization Generally not polarized. Can be polarized, which means the oscillations occur in a specific direction.
Transmission In Electromagnetic Field Longitudinal waves cannot travel in electromagnetic field.   Transverse wave can travel in electromagnetic field.
Analogy   Slinky spring analogy is often used to represent longitudinal wave motion. Rope or string analogy is often used to represent transverse wave motion.
Energy Transport Energy is transported through compressions and rarefactions. Energy is transported perpendicular to the oscillations in the crests and troughs.

Key Takeaway

Transverse waves are vibrations in which energy is transferred in a perpendicular direction to the direction the wave is moving. Longitudinal waves differ because the particles in a medium move closer together and further apart as they travel parallel to the direction the wave is moving. A medium is the type of matter that energy is being transferred through including air or water.

Also Read: Difference Between Mechanical And Electromagnetic Waves

Similarities Between Longitudinal Wave And Transverse Wave

  • Both are types of mechanical waves that transfer energy through a medium without transferring matter. They propagate by causing a disturbance that travels through the medium.
  • Both types of waves can exhibit interference, where multiple waves overlap and combine either constructively (amplitude increases) or destructively (amplitude decreases), resulting in complex wave patterns.
  • The speed of both longitudinal and transverse waves can be calculated using similar principles, involving the properties of the medium through which the wave is propagating. The wave speed is determined by the medium’s elasticity and density.
  • Both types of waves can be reflected and refracted when they encounter a boundary between two different mediums. Reflected waves bounce back off the boundary, while refracted waves change direction as they cross the boundary.
